Need a platform lift designed and installed? Anything is possible with Dalby

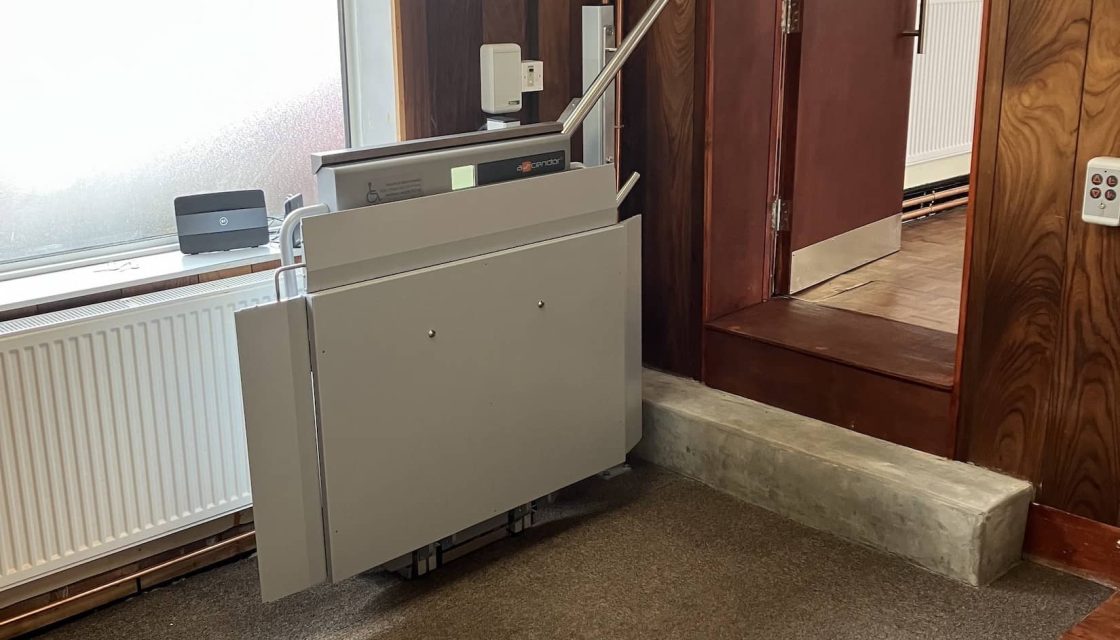

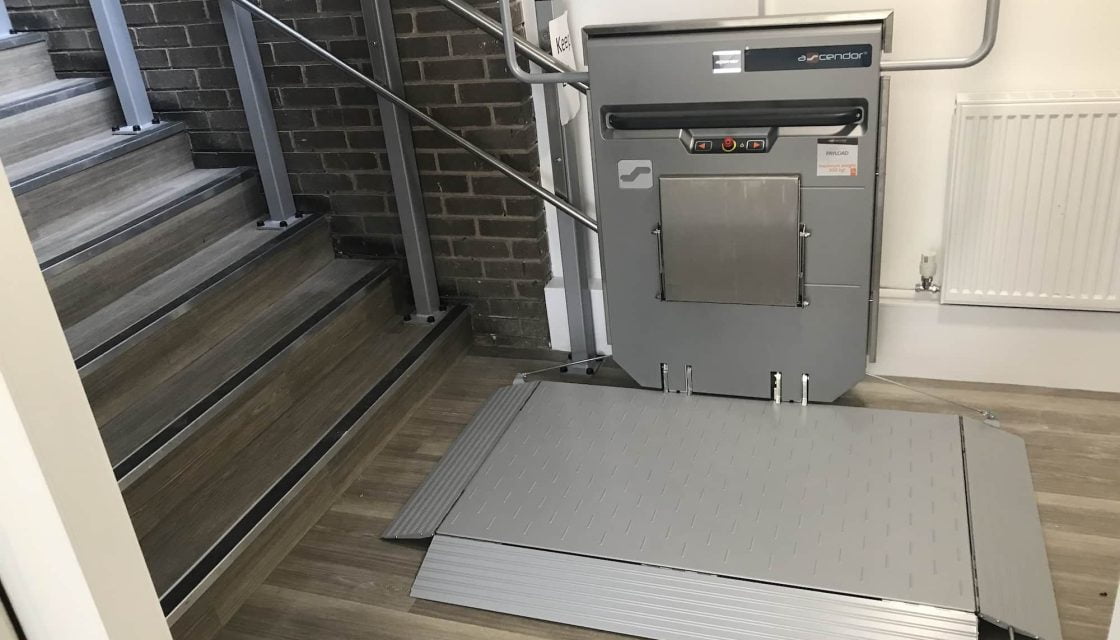

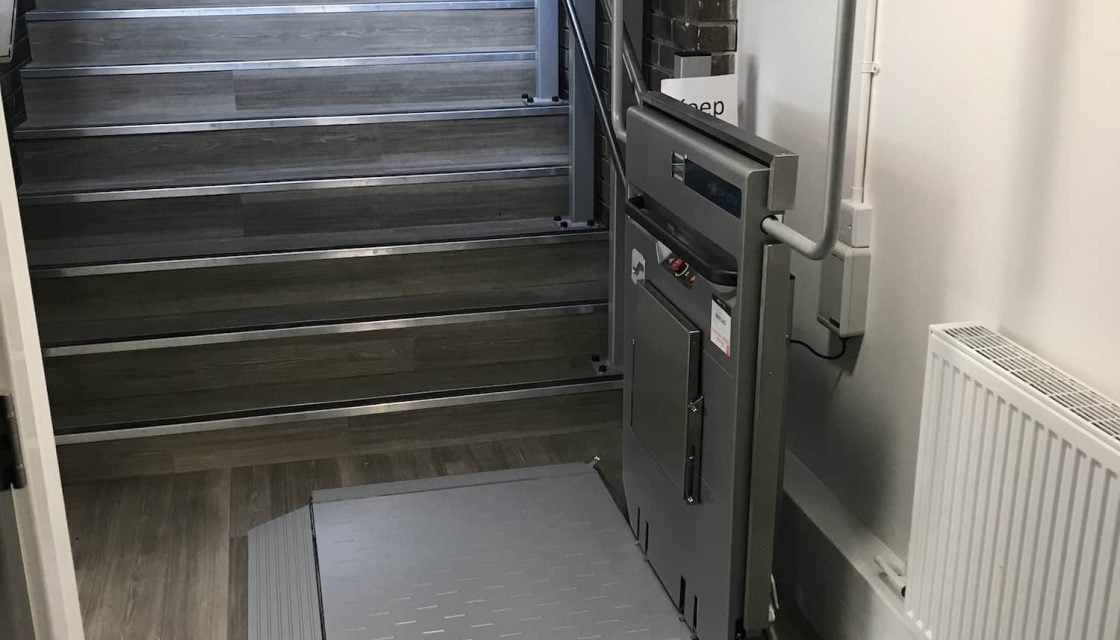

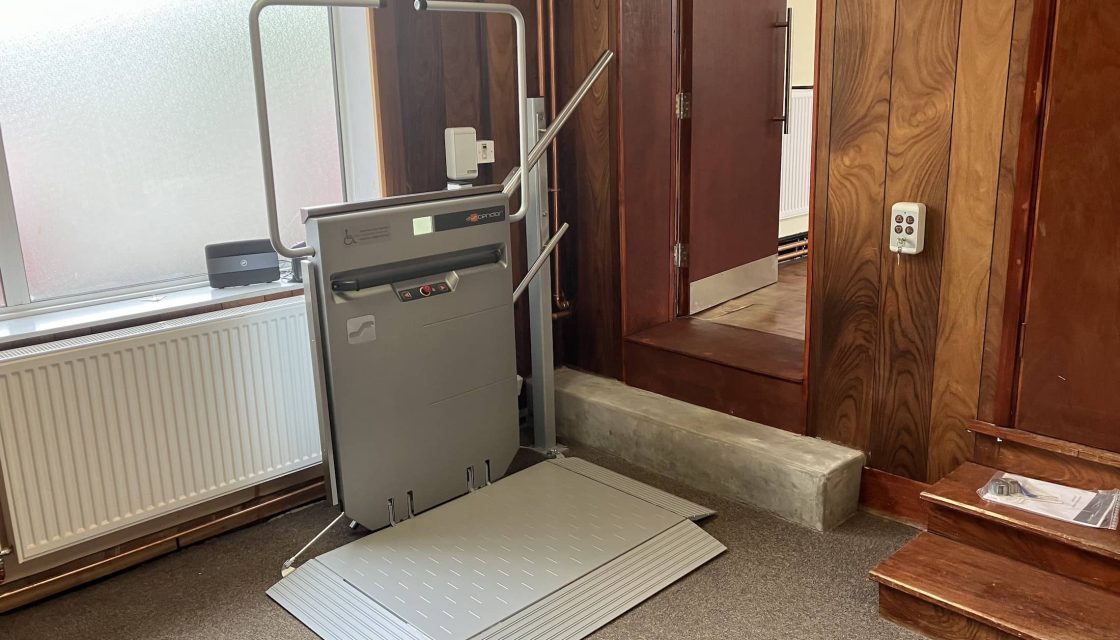

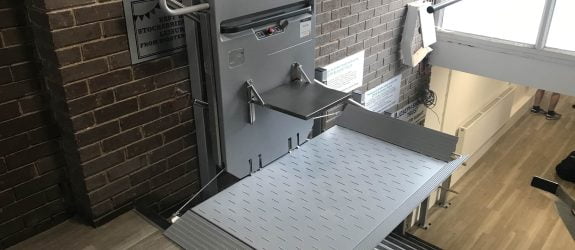

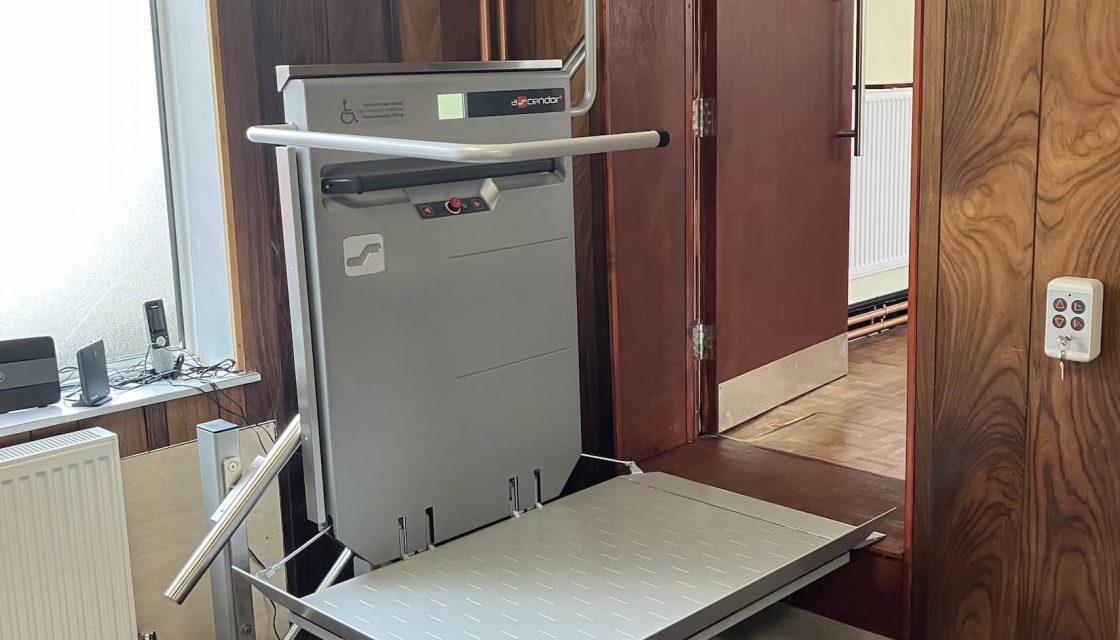

Our Inclined Platform Lift is designed to carry a wheelchair up and down an existing set of stairs. It is designed to keep the user on a level platform as the lift follows the incline of the stairs, whilst automatic safety barriers keep the user secure on the platform throughout the travel. Our Inclined Platform Lift provides a great, cost effective solution to providing access between levels where a vertical lift is not practical to fit. The platform can be folded vertically when not in use keep stairways clear and can be fitted both internally and externally with a wide range of finishes.

Specifications

Specifications

  • Capacity 300kg
  • Platform Size: 800mm(W) x 1250mm(L) for Part M compliant size or 800mm(W) x 1000mm (L)
  • Application: Internal or external / straight or curved
  • Mount: Wall or stanchion post
  • Width: Minimum clear width of 990mm wide required
  • Folded Width: 250mm (wall mounted)
  • Rail: Stainless steel rail which can be used as a dry and clean handrail.
  • Controls: Lockable wireless control stations at both landings
  • Arms: Barriers arms which fold under the platform when parked
  • Display: Digital information display
  • Power: Battery operated in normal use.

Optional Extras

  • Folding seat
  • Graphic printing to underside of platform
  • Stainless steel or alternative RAL colour
